Product Description

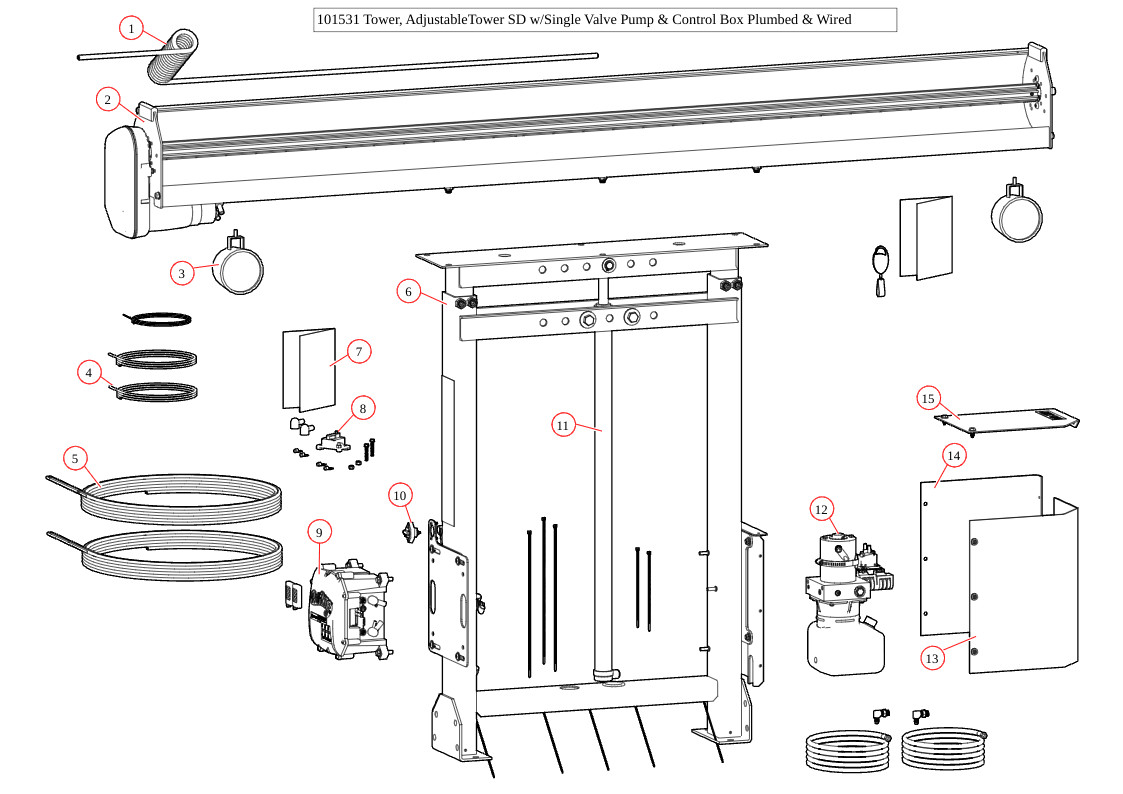

Parts List
-
11328: Wire, 2 Stage Tower Coil 110" (Assembled) (Parts: 1)
-
36479: Spool Kit, Super Duty Tarp Spool w/ 98" Integrated Housing (Parts: 2)
-
104103: Light, Work Light LED 12V (Qty: 2)(Parts: 3)
-
11345: Wire, 16 ga. 2-Conductor (per foot) (Qty: 2) (Parts: 4)
-
11330: Wire, 6 Ga. Dual Conductor (per ft) (Qty: 2) (Parts: 5)
-
39004: Tower, Stationary Tower for Integrated Housing (Parts: 6)
-
101630: Instructions, DC Series Installation (Parts: 7)
-
17913: Breaker, 100 amp Manual Reset Breaker Kit for 24V & 12V Integrated Pump (Parts: 8)
-
19865: Control Box, Wireless Black Control Box (12/24V Waste) (Parts: 9)
-
17918: Breaker, 35A Outdoor Manual Reset Circuit Breaker (Parts: 10)
-
39520: Cylinder, 1.5" Bore x 36" Stroke DA, Single Flange Mount (Parts: 11)
-
39612: Hydraulic Power Unit, 12V, 1 Valve (Parts: 12)
-
39615: Pump Cover, Poly Side Cover for Vert Mount Pump (Parts: 13)
-
10794: Bracket, Pump Mount Cover Steel 1/8x16x13 7/8" (Parts: 14)
-
10778: Bracket, Steel Vert Pump Mount Cover (Parts: 15)
