Product Description
Pioneer HR1500H Tuff-Tarper – Steel Frame
System Overview:
The HR1500H Tuff-Tarper with Steel Frame is a hydraulic truck tarp system designed to integrate directly with your truck’s existing hydraulic setup. It is built for long-lasting performance, reduced maintenance, and smooth operation in everyday roll-off and hook-lift applications.
The system delivers reliable load coverage for containers up to 16 feet long using proven Pioneer Refuse Systems technology, ensuring consistent hydraulic control and dependable results.
Key Benefits & Features:
Why Choose the HR1500H Steel Tuff-Tarper:
-
Engineered for Professionals: Combines strength, simplicity, and hydraulic precision
-
Heavy-Duty Steel Construction: Pivot arms, gantry assembly, and framework resist bending, flexing, and fatigue
-
Hydraulic Direct-Drive Operation: Integrates with truck hydraulics for steady, smooth tarp movement
-

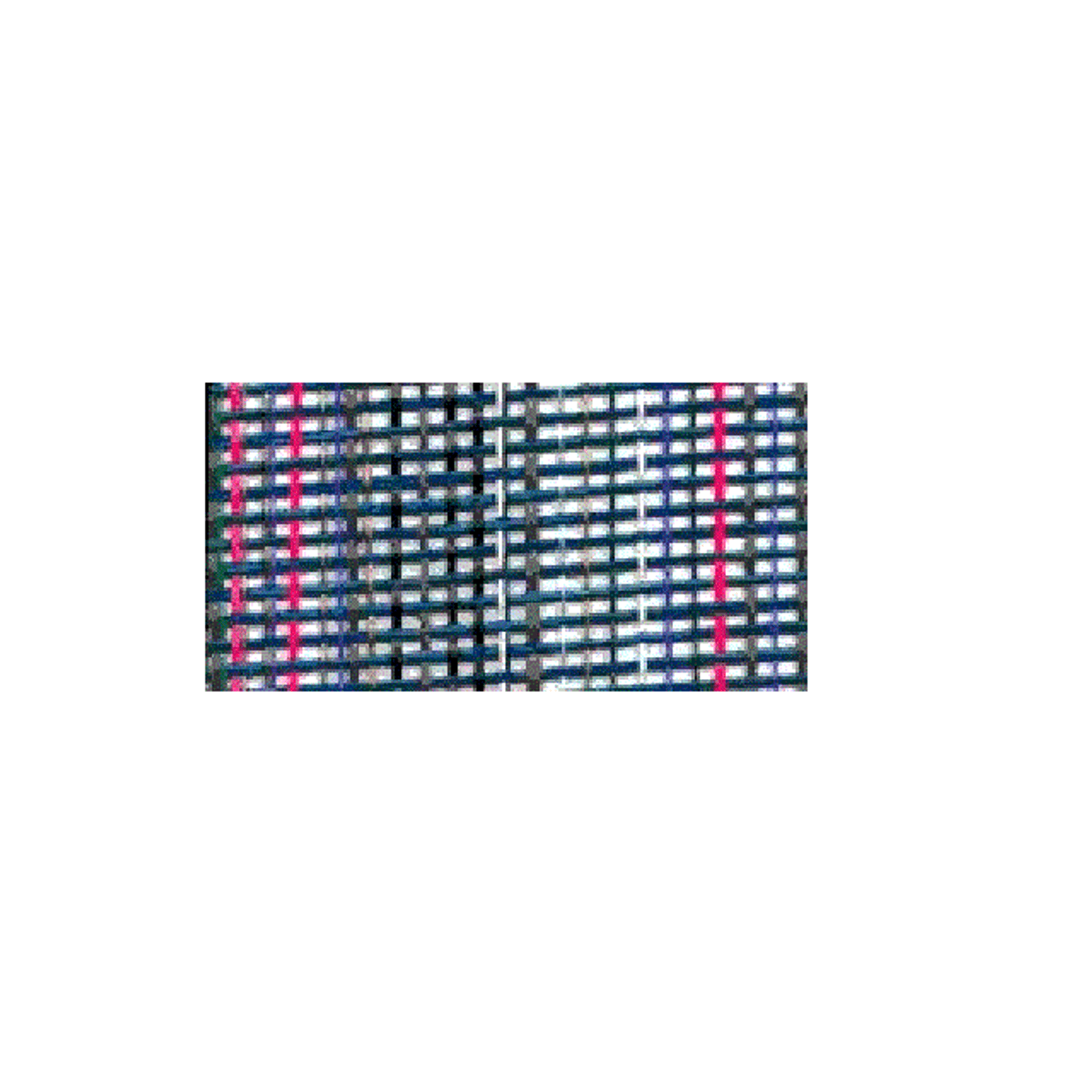

Heavy-Duty Mesh Tarp Included: 9 feet x 19 feet, provides maximum coverage and durability
-
Simplified Maintenance: Fewer components and straightforward hydraulic connection reduce maintenance time and cost
System Operation:
-
Connect the HR1500H directly to the truck’s hydraulic system.
-
The hydraulic motor and cylinder raise and lower the gantry, while torsion-spring pivot arms deploy the tarp smoothly over the load.
-
Arms rest on the rear of the container when in the covered position.
Gantry Stroke Range: 36 inches (3 feet)
Container Compatibility: Up to 16 feet in length
Complete HR1500H-DEL Parts List:
Hardware Kit:
-
1500HDEL-HW: Hardware Kit for HR1500H-DEL (Quantity: 1)
Mounting & Arms:
-
G1530: Mounting Bracket, 16–19 Deluxe (Quantity: 2)
-
G1542A / G1543A: Base Arms, Left and Right Side (Quantity: 1 each)
-
G1556: Upper Arm, 16–19, 9-1/2 feet Deluxe (Quantity: 2)
Cover & Bow Components:
-
G2016: 19 feet x 9 feet Heavy-Duty Mesh Cover (Quantity: 1)
-
G2099: Deluxe Straight Bow Corners (Quantity: 2)
-
H7037: Rear Section, 9 feet (Quantity: 1)
Roller & Gantry Components:
-
HR1529: Gantry Assembly with Hydraulic Hoses (Quantity: 1)
-
HR1580: Roller Assembly, HR1500H (Quantity: 1)
-
HR4520: Gantry Cylinder, 36-Inch Stroke (Quantity: 1)
Miscellaneous:
-
RPCRATE: Wooden Crate for Roll & Pull Kits (Quantity: 1)
-
SPHR1500H: Serial Plates — HR1500H (Quantity: 1)
