HR1000 - w/Power Pack

Product Description

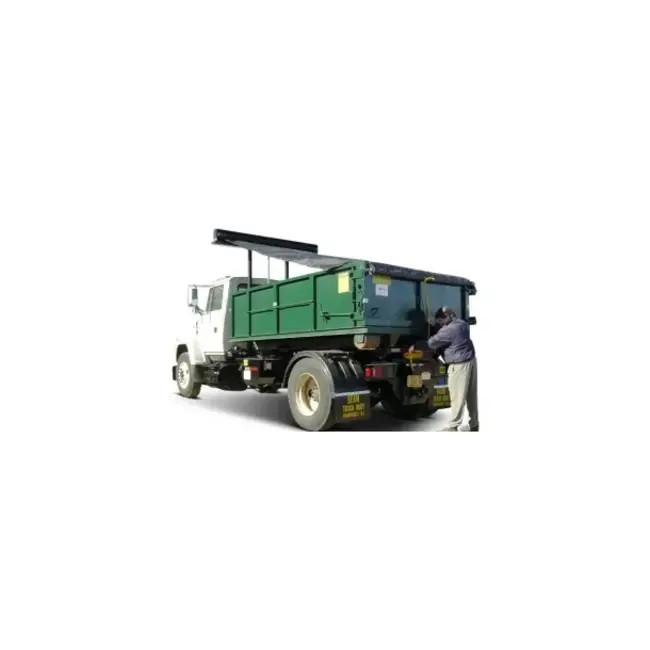

Pioneer HR1000 HI-ROLLER Refuse Tarping System with Power Pack

The Pioneer HR1000 HI-ROLLER Refuse Tarping System with Power Pack is a semi-automatic, armless tarping system built for single-axle hook lift trucks and cable hoists. Designed to cover open-top, fixed-height containers from 8' to 16', this tarp system combines strength, simplicity, and durability.

Powered by a 12-volt DC self-contained pack, the HI-Roller uses a hydraulic gantry that adjusts from 64" to 104" for smooth operation. This system is easy to secure loads with 9' wide expandable heavy-duty mesh tarp.

The Tuff-Tarper Advantage

The HI-ROLLER is part of Pioneer’s Tuff-Tarper Series, a line of tarp systems specifically engineered for single-axle cable hoist and hooklift trucks.

• Available in semi-automatic, automatic, and hydraulic models.

• Built with heavy-duty components for long-term performance.

• Includes a 9' x 19' expandable heavy-duty mesh tarp standard.

Looking for a hydraulic-powered option? See the HR1000PTO, which integrates with your truck’s hydraulic system instead of a power pack.

Easy To Use Semi-Automatic Tarping System

Operating the HR1000 HI-Roller is simple

1. Raise the gantry above the container.

2. Flip the rope above the load.

3. Walk to the rear of the truck and pull the tarp over the container.

4. Tie the tarp to the provided cleat.

This truck tarp system is designed for efficiency, saving time while keeping loads compliant and protected.

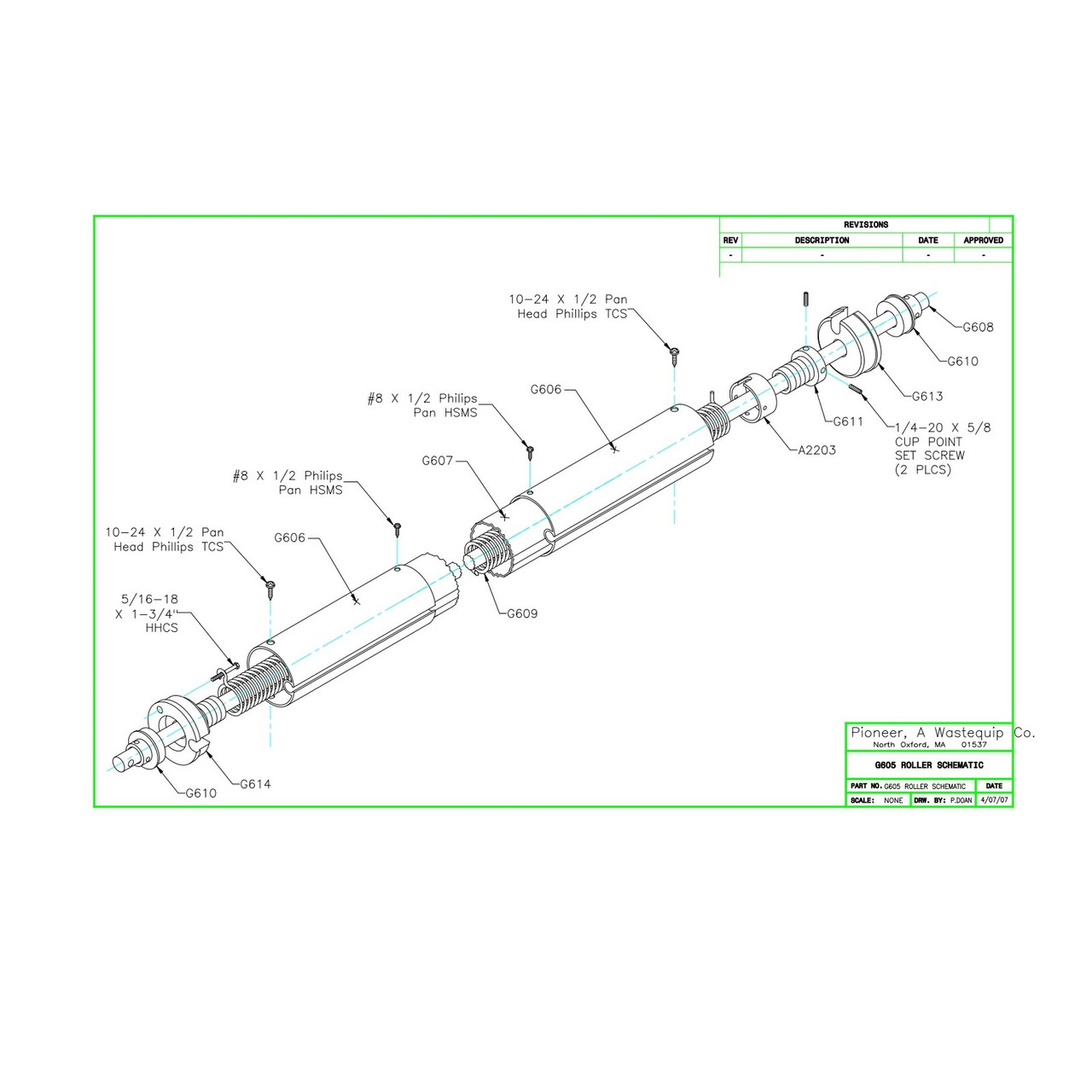

HR1000 HI-ROLLER Parts List

Each Pioneer HR1000 HI-ROLLER tarping system includes all parts and components for complete installation and operation.

Roller and Gantry Components

• Wheel to Load Roller

• Complete Roller Assembly

• Roll Tube

• Center Section Roll

• Roller

• Gantry Assembly

• Telescopic Gantry Leg (40")

• Lower Gantry 40" Cylinder

Hardware and Fasteners

• Lock Ring

• Guide Washer

• Collar

• Steel Housing & Housing Assembly

• Shaft, Spring, Bearing, Cone & Spacer

• Pull Rope with Snap Hook

• Eye Bolt

• Rear Section

• Roll Mounting Angle

• Clevis Eye Pad

• Clevis Pin with Cotter

• Roll Base

• Rope Hook

Hydraulic Components

• 40" Cylinder

• Hydraulic Power Pack

• ¼ NPT x -6 JIC 90° ELL

• Hydraulic Hose (-4 x 9', crimped two ends)

• Hydraulic Hose (-4 x 6', crimped two ends)

Replacement Covers Available:

• 9' x 19' Heavy-Duty Mesh
