  • RP4500SARG Hydraulic Power Unit, Without Diverter and Spool

    • RP4500SARG Hydraulic Power Unit, Without Diverter and Spool

    Mountain Tarp

    $10,629.16
    (No reviews yet) Write a Review
    SKU:
    65-RP4500SARGDEL
    Weight:
    1,400.00 LBS
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

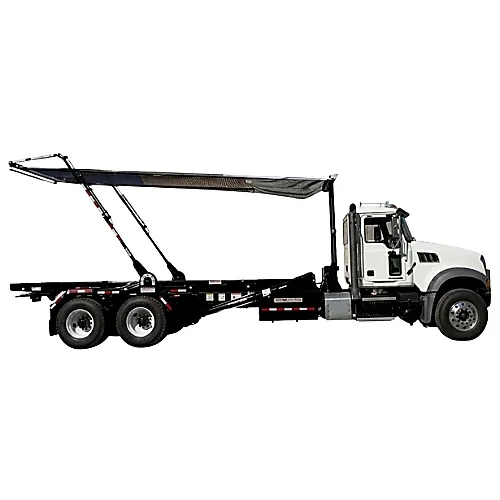

    This Rack-N-Pinion tarping system has been the system of choice in the roll-off industry for over a decade. Our patented hydraulic arms and gear assembly combined with our “Strong Arm” technology and Everlast Tarp Roller produce the only fully hydraulic system known for reliability and low maintenance. The reinforced “C” Channel provides better leverage, greater control and longer life. Look for the Rack ‘n Pinion tombstone as a symbol of Pioneer's industry leading tarping system.

    RP4500SARGDEL Parts Include:

    Hardware & Components:

    • 381675HHCS5: 3/8"-16 x 3/4" Hex Head Cap Screw, Grade 5 (Quantity: 9)

    • 4500SARGDEL-HW: Hardware Kit for RP4500SARGDEL (Quantity: 1)

    • H7002C-B: Everlast Roller Assembly (BUY) (Quantity: 1)

    • HR4505-2: Roll Base with Rest for “RG” (Quantity: 1)

    • HR4511: Gantry Assembly, Complete with Legs and Eye (Quantity: 1)

    • HR4520: Gantry Cylinder — 36-Inch Stroke (Quantity: 1)

    • HR4562A: Hydraulic Hose, -4 x 9 Feet Length -06 (Quantity: 1)

    • HR4563: Hydraulic Hose, -4 x 6 Feet Length -06 (Quantity: 1)

    • HR4628: Hydraulic Hose, -4 x 14 Feet Length -06 (Quantity: 8)

    • HR4723: Chassis Mounting Tubes, Left Side (Quantity: 4)

    • HR4753: Stabilizer Bar (Quantity: 1)

    • HR4758-2: Tarp Tube — 90 5/8 Inches (Quantity: 1)

    • HR4759: Cover for RPSA (Quantity: 1)

    • HR4761D: Mounting Bracket Assembly, Right Side (Quantity: 1)

    • HR4762D: Mounting Bracket Assembly, Left Side (Quantity: 1)

    • HR4766L: Arm Assembly, Driver Side Complete (Quantity: 1)

    • HR4766R: Arm Assembly, Passenger Side Complete (Quantity: 1)

    • HR4780-1: Winding Disk to Load Roller (Quantity: 1)

    • HR4811: Mounting Bracket, Gantry (Quantity: 2)

    • K0353: 3/8" Flat Washer (Quantity: 9)

    • RPCRATE: Wooden Crate for Roll & Pull Kits (Quantity: 1)

    • SPRP4500: Serial Plates — Roll & Pull (Quantity: 1)

    Features & Benefits

    • Stronger Tarp Arms: Made of 3/16” A5 steel with reinforced “C” channel for maximum strength

    • Telescoping Arms: With 36-inch stroke and nitrited rod cylinders to reduce corrosion and extend life

    • Spring-Loaded Roller Assembly: Everlast roller system for consistent operation

    • Quick Tarp Attachment: Simplifies installation and removal of tarps

    • Ratchet and Pawl Design: Faster, easier tarp installation

    • External Cylinder Placement: Arms feature external cylinders for easier access and maintenance

    • Offset Stabilizer Bar: Virtually eliminates roller damage

    • Telescopic Arms: Adaptable to containers of various heights (up to 8 feet) and lengths (up to 24 feet)

    • Industry-Leading Warranty: 5-year non-prorated warranty covers the entire system (excluding tarp)

    • Adjustable Gantry: Moves vertically from 60 inches to 90 inches
