Product Description
Pioneer Rack-N-Pinion Tarp System - The #1 Roll Off System!

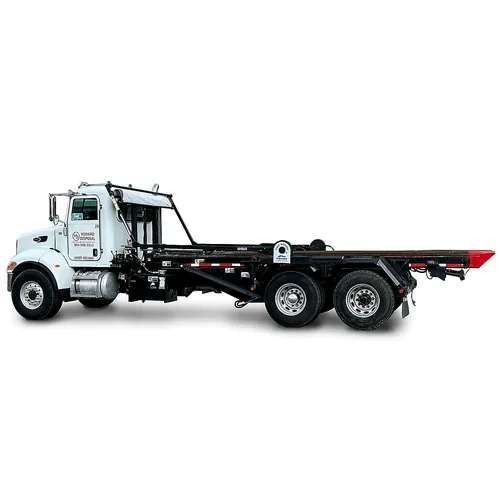

RP4500SARG Rack-N-Pinion Tarp System
Overview:
The RP4500SARG is a fully adjustable, hydraulic-powered tarp system designed for tandem or tri-axle hooklift and roll-off trucks with 20 to 50 yard containers up to 24 feet long. Known for its high configurability, low-maintenance design, and durable construction, it has been the industry standard for decades.
Key Features:
-
Hydraulic-powered telescoping arms, 3/16 inch A500B steel
-
Nitrited external cylinders for easy maintenance
-
Adjustable gantry tower: vertical range 60 inches to 96 inches
-
Uses truck’s existing PTO hydraulic system
-
5-year warranty on system (tarp excluded)
-
Rack-and-pinion pivot system for forward/backward control, synchronized pivot arms, and precise tarp deployment
-
Reinforced base arms and “C” channel for increased leverage and durability
-
Requires 10 to 12 inches of space behind the cab
Tarp Included:
-
114 inch Heavy-Duty Mesh Tarp
-
Reinforced at front and back with wear-resistant, urethane-coated nylon
-
Optional replacements:
-
8 feet × 28 feet Multi-Mesh Tarp
-
9 feet 6 inches × 28 feet Reinforced Black Mesh Tarp
-
Technical Details:
-
Telescoping arms cover containers up to 8 feet high and 24 feet long
-
Arm stroke: 36 inches (nitrited cylinders)
-
External cylinders allow easy access and maintenance
-
Strengthened rack-and-pinion pivot system ensures precise control and longer service life
Parts List (RP4500SARG):
-
Spring-Loaded Roller: H7002C
-
Arm Pivot Pin Kit: A3881KIT
-
Arm Glide Cylinders, 36 inch Stroke: HR4752
-
Gantry Lift Cylinder, 36 inch Stroke: HR4520
-
3-Spool Cover Control Valve: HR4535A
-
Roll Base with Rest: HR4505-2
-
Complete Gantry Assembly: HR4511
-
L-Shaped Chassis Mounting Tubes: HR4723
-
Complete Driver Side Arm Assembly: HR4766L
-
Complete Passenger Side Arm Assembly: HR4766R
-
Driver Side Mounting Bracket Assembly: HR4762A
-
Passenger Side Mounting Bracket Assembly: HR4761A
-
Additional Replacement Parts (standard replacement tarp: HR4759)
