DC428, SD Dual Stage Tower, 8 Spring 16' Top Mount Pivot, Wide Bow Set

Product Description

Compact yet robust, this dual-stage tarp system is ideal for multi-axle roll-off and hook-lift trailers with tarp lengths between approximately 32′ and 42′.

Key Features

• Dual-Stage Super Duty Tower: Raises for extra height while keeping the base compact


• 8-Spring Top-Mount Pivot with 16′ (192") Tubes: Delivers balanced tension and durable performance


• Wide Bow Set: Incorporates a 103½″ top tube with matching side arms for full load coverage


System Details

• System Type: Detachable Container Roll-Off

• Vehicle Fit: Multi-axle hook-lift or roll-off trucks

• Tarp Coverage Range: Approximately 32′ to 42′

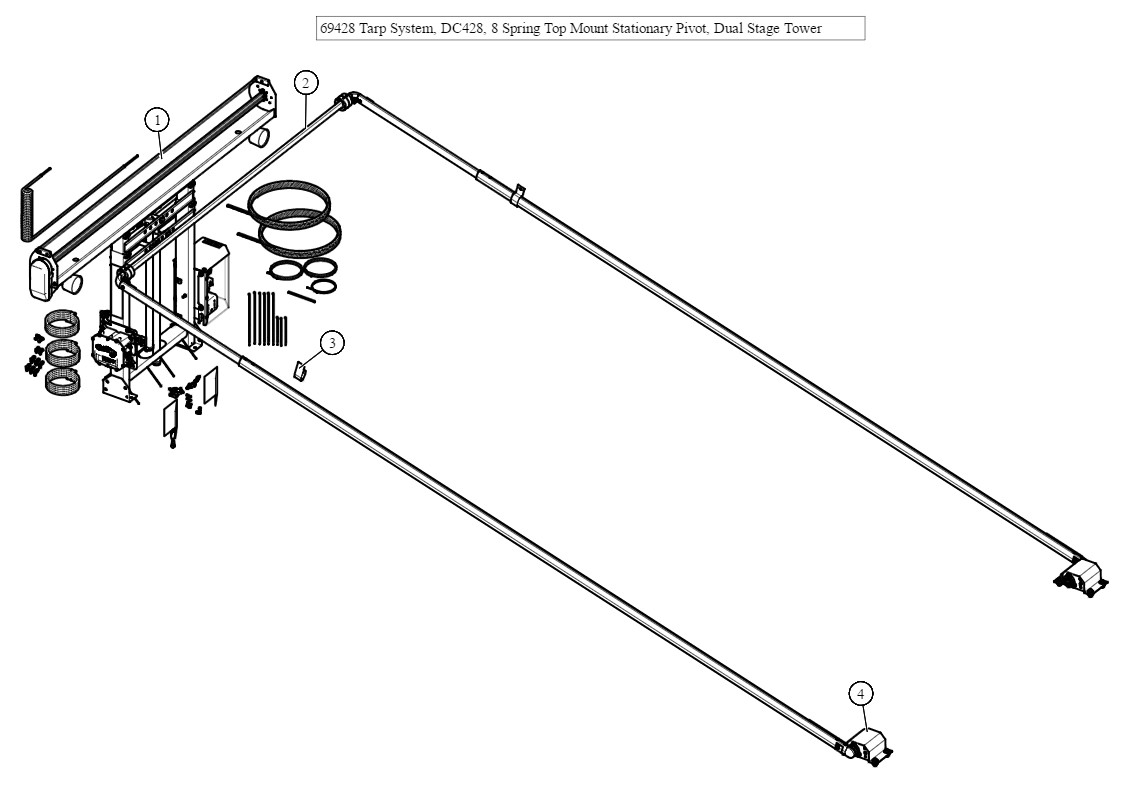

Parts List

• 103639: Tower Assembly, Super Duty Dual Stage Tower w/Single Valve Pump & Control Box (Part -1)

• 76720: Bow Set, 103 1/2" Wide Top Tube and 103 1/2" Side Arms (Part -2)

• 76831: Bracket, Pivot Arm Tie Down (Part -3)

• 47650: Pivot Set, 8 Spring Top Mount w/ 192" Pivot Tubes (Part -4)
