Product Description
A high-capacity dual-stage tarp system tailored for multi-axle roll-off and hook-lift trailers hauling extra-long loads (approx. 42′–46′ tarp length). It features a robust dual-stage Super-Duty tower, a 12-spring extreme-duty top-mount pivot with 160" span, and an extreme bow set with heavy-duty elbows—engineered for heavy-duty performance and maximum coverage.
Key Features
-
Dual-Stage Tower: Offers extended height reach while maintaining a compact base for easy stowage.
-
160" Top-Mount Extreme-Duty Pivot, 12 Springs: Delivers superior tension control and resilience in demanding conditions.
-
Extreme Bow Set: Wide, reinforced bow tubing with 90° elbows for full coverage and rugged durability.
System Details
-
System Type: Detachable Container Roll-Off
-
Vehicle Compatibility: Multi-axle hook-lift or roll-off trucks designed for long payloads
-
Tarp Coverage: Ideal for containers requiring approximately 42′–46′ of tarp ($10,200–$10,800 price range based on typical listings).

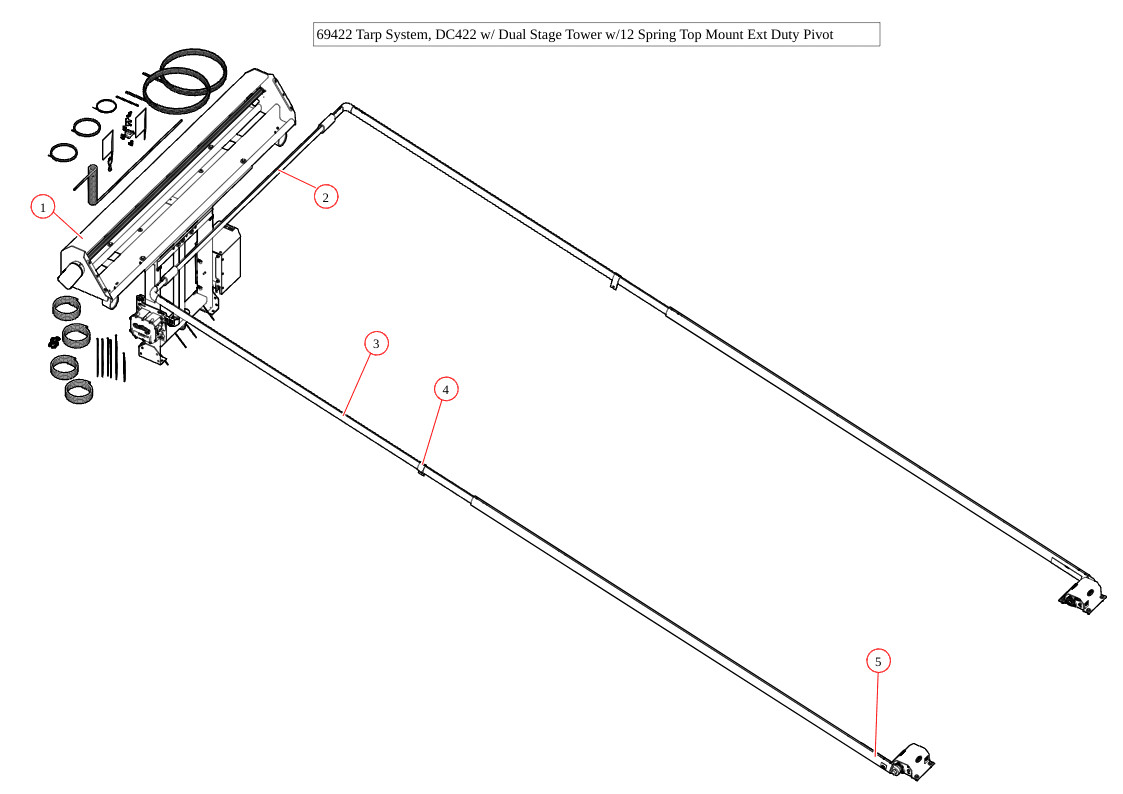

Parts List
-
103920: Dual-Stage Tower Assembly with single-valve pump, high-capacity housing, and wireless control box
-
76723: Extreme Bow Set: 103½" wide top tube kit with 90° elbows
-
76831: Pivot Arm Tie-Down Brackets
