Product Description
Heavy-duty dual-stage tarp system designed for multi-axle roll-off and hook-lift trucks. Features a Super Slider dual-stage tower for added height clearance, a 6-spring narrow-profile sliding pivot with 96″ tubes, and a wide bow set with 45° offset elbows for improved coverage and load clearance.
Key Features:
-
Dual-Stage Super Slider Tower extends an additional 36″ for taller containers
-
6-Spring Narrow Sliding Pivot Set with 96″ tubes for strength and stability
-
Wide Bow Set with 103½″ top tube and side arms
-
45° Offset Elbows for maximum clearance around frames and containers
System Details:
-
System Type: Detachable Container Roll-Off
-
Vehicle Compatibility: Multi-Axle Hook-Lift Trucks
-
Spring Configuration: 6-Spring Sliding Pivot

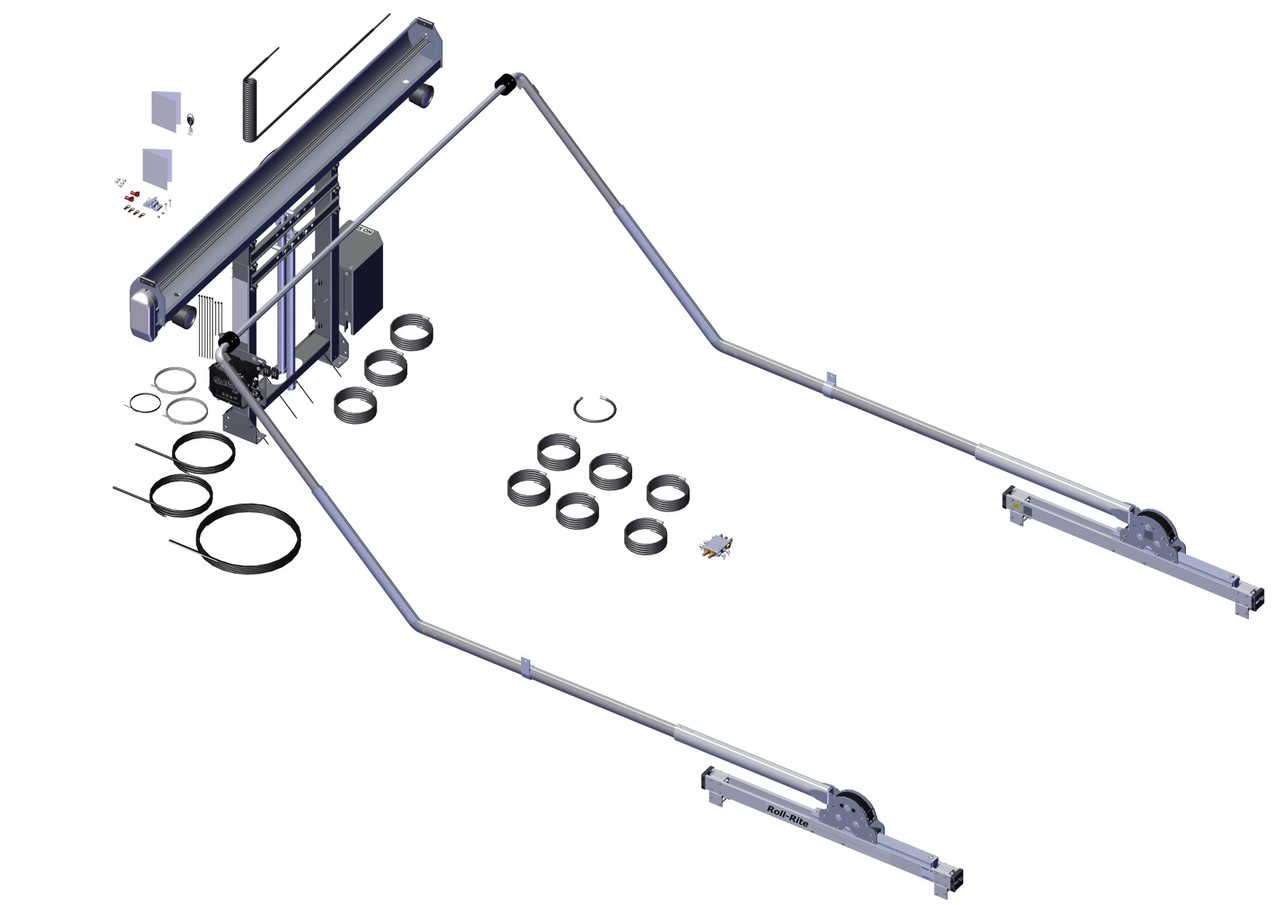

Parts List:
-
103632; Tower, Dual Stage Adjustable Tower w/Dual Valve Pump & Control Box 12V SD (Part - 1)
-
103311: Short & Wide Bow Set, 103 1/2" Wide Top Tube and 49" Side Arms (Part - 2)
-
47730: Pivot Set, 20'' Narrow Profile Sliding 6 Spring Pivot Set w/ 96" Tubes (Part - 3)
-
76916: Pivot, 45 Low Arm Elbow Kit 32" Extension (Part - 4)
