ALC300,Multi-Axle Hydraulic Gantry & Hydraulic Slide Arms (ROHGHS)

Product Description

A heavy-duty steel tarp system crafted for roll-off and hook-lift applications—specifically designed for multi-axle vehicles. This robust setup leverages the truck’s hydraulics to power a fully adjustable telescoping gantry and hydraulic slide arms, delivering consistent coverage across various container sizes.

Key Features:

• Adjustable Hydraulic Telescoping Gantry System – Overview

  Telescoping Gantry

  • Lowers from 64 inches and extends an additional 36 inches to reach 100 inches.

  • Constructed with thick-wall steel tubing for enhanced strength:

    • Lower section: 3½ inches × 3½ inches × 3/16 inch

    • Upper section: 3 inches × 3 inches × 3/16 inch

  • Includes a corrosion-resistant hydraulic cylinder with:

    • 36 inch stroke

    • 1¾ inch bore

    • 1¼ inch nitrate rod

  Pivot Mount with Arch Guide

  • Smooth, wear-resistant pivot movement with:

    • ½ inch steel arch guide

    • UHMW self-lubricating guides

    • Teflon-lined spherical bearings

  • Corrosion-resistant pivot cylinders:

    • 2¼ inch bore

    • 25 inch stroke

    • 1¼ inch rod

  • Safety stop included for small containers

  Hydraulic Sliding Arms

  • Synchronized using gear-driven flow dividers for pivot and slide cylinders.

  • Slide arm cylinder has a 36 inch stroke with nitrate rod.

  • Arms hydraulically lower and lock onto the container for secure coverage.

  Tarp Spool & Hold-Down Assembly

  • Features a hold-down bar for rapid tarp removal.

  • Uses a 3½ inch extruded aluminum torsion tube tarp axle.

  Heavy-Duty Mesh Tarp Support

  • Includes a 96 inch × 32 foot HD mesh tarp with flaps.

  Truck-Hydraulic Operation

  • Powered entirely by the vehicle’s hydraulic system.

  • Stackable valve sections and flow dividers allow easy installation and reliable control.

  Mechanic-Friendly Design

  • Maintenance-ready design with:

    • Grade-8 fasteners

    • User-accessible components

    • Standard hydraulic hoses with #4 JIC fittings

System Details:

• System Type: Detachable Container Roll-Off / Hook-Lift

• Vehicle Compatibility: Multi-Axle Roll-Offs and Hook-Lift Trucks

• Standard Tarp: 32 - feet HD mesh tarp (installed)

• Telescoping Gantry Range: 64 inches lowered position → 100 inches fully extended

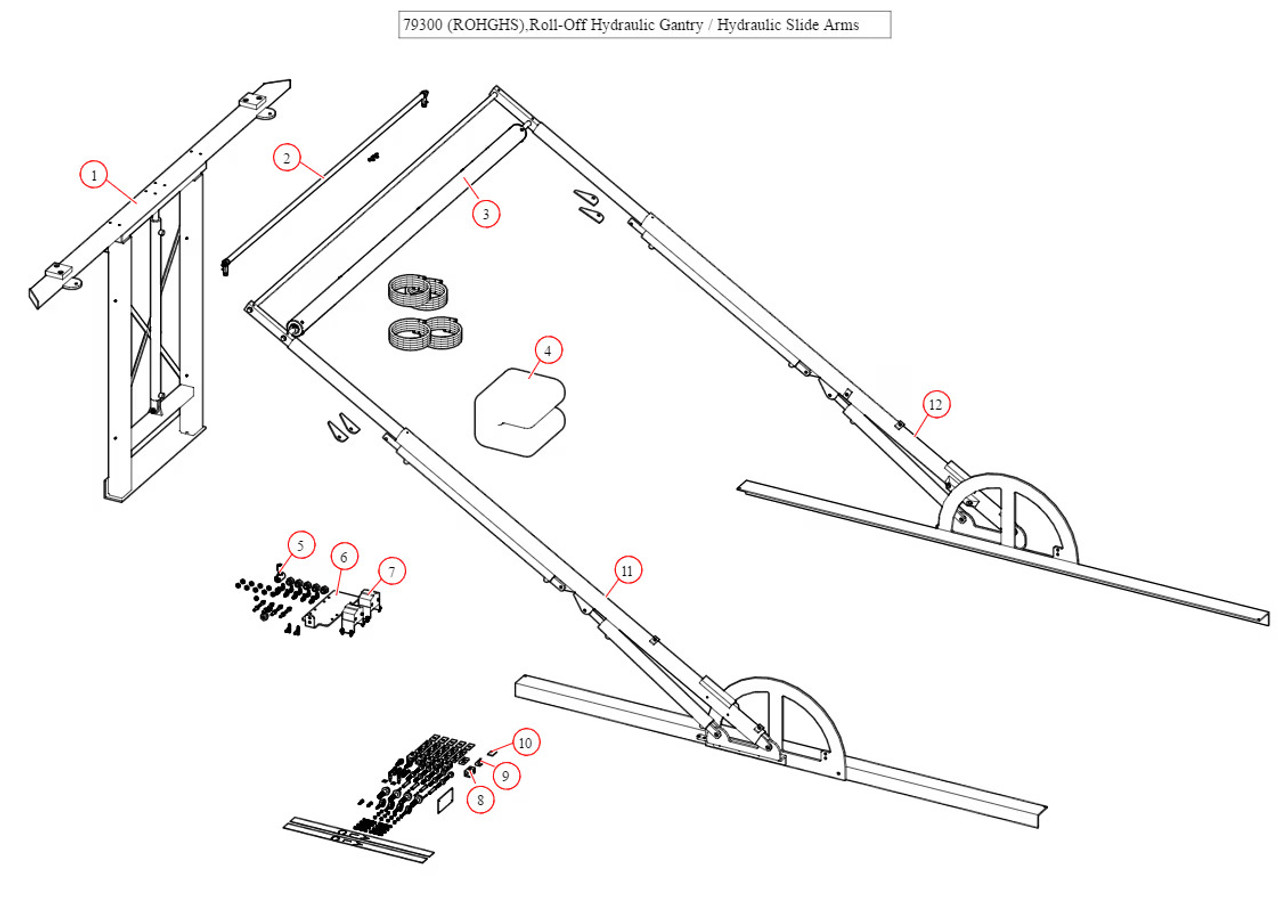

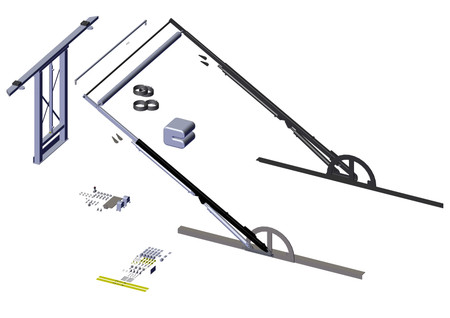

Parts List:

• • Hydraulic Gantry (Model ROHG) (Quantity: 1)

  • Hold Down Bar Assembly, 83 inches (Model HDBA83) (Quantity: 1)

  • Torsion Tube Assembly for Hooklift and Roll-Off (Model ROTTA) (Quantity: 1)

  • Super Tough Extreme Mesh Tarp, Multi-Axle, 96 inches × 32 feet, with Flaps (ALC Series) (Quantity: 1)

  • Mounting Bracket for PM2 Flow Divider (Model PM2B2) (Quantity: 1)

  • Flow Divider PM2 with Hardware (Quantity: 2)

  • Rolloff Pivot Mount Assembly, Left (ALC) (Quantity: 1)

  • Rolloff Pivot Mount Assembly, Right (Quantity: 1)
