Product Description

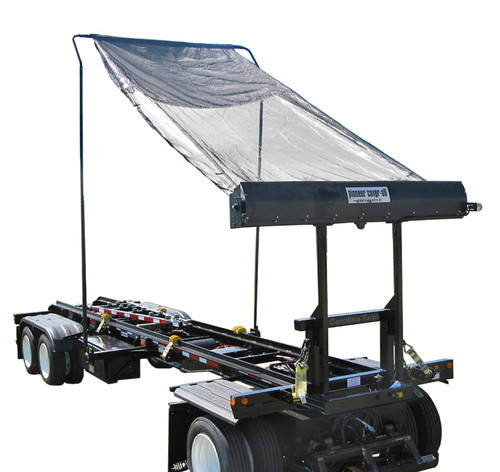

Pioneer Hydraulic Roller 1500E Tuff-Tarper – Tuff-Tarper Series
System Overview:
The Hydraulic Roller 1500E Tuff-Tarper is part of Pioneer’s Tuff-Tarper Series, designed for single-axle cable hoist and hook-lift trucks. These systems cover open-top containers ranging from 8 feet to 16 feet in length and are available in semi-automatic, automatic, and hydraulic versions.
Pioneer describes these units as “the utility knife of the trucking world” for their versatility and user-friendly design. The HR1500E is ideal for same-size containers.
Motor and Operation:
-
Power: 12-volt direct current electric motor with right-angle, direct-drive gearbox
-
Provides steady, quiet, and efficient movement
-
Two-way electrical switch allows quick covering and uncovering
-
Roller Assembly: Mounted on top of a fixed gantry
Steel Model Features:
-
Heavy-Duty, Unbreakable Side-Mounted Pivot Arms made from 1-5/8" steel tubing
-
Reverse-Wound Torsion Springs assist pivot arm movement for easier deployment
-
Fixed Gantry: 63 inches (5 feet 3 inches) above top of chassis
-
Tarp: 9 feet wide, expandable heavy-duty mesh
Notes on Fixed Gantry:
-
Fixed or stationary gantries are adequate for most applications
-
Adjustable hydraulic gantries allow gentle lowering of the tarp over the load, reducing damage and wear
-
All gantries, telescopic or fixed, require 10 inches of clearance for the roller rest
-
Fixed gantries can sometimes be modified for limited clearance applications
Parts Included:
-
Chromed Cover (Electric Tarp Motor)
-
40 Ampare Circuit Breaker (for 8–19 foot unit)
-
Rotary Switch Kit with Bracket
-
Roll Pin — 5/16" x 1-1/2"
-
Arm Mounting Bracket
-
Retaining Side Ring Mount
-
Left and Right Base Arm with Torsion Springs
-
Upper Arm — 9-1/2 feet Steel
-
Straight Bow Corner
-
Cover Spring
-
Rear Bow Corner — Aluminum
-
Roller Assembly
-
Fixed Leg Assembly with U-Bolt
Replacement Covers Available:
-
9 feet x 19 feet Heavy-Duty Mesh
-
9 feet x 19 feet Deluxe Asphalt
