Product Description
Pioneer Hydraulic Roller 1500 Power Take-Off Roll-Off Tarp System
System Overview:
The Hydraulic Roller 1500 Power Take-Off is a rugged steel roll-off tarp system for multi-axle hooklift and cable roll-off trucks, designed for containers 16 feet to 24 feet in length. It combines steel construction, a hydraulic motor, and adjustable gantry to create a durable, low-maintenance solution.
The system features a torsion spring-activated pivot arm system, hydraulic PTO-driven roller, and hydraulically adjustable gantry for smooth, snag-free deployment of the included heavy-duty mesh tarp. Installation is straightforward, estimated at 8–12 hours.
Features and Benefits:
-
Standard Tarp: 9 feet wide expandable Heavy Duty Mesh
-
Hydraulic Motor and Gearbox: Right-angle direct-drive assembly powered by the truck’s hydraulic system
-
Fixed Length Pivot Arms: Made of heavy-duty steel and powered by reverse-wound torsion springs
-
Adjustable Hydraulic Gantry: Moves vertically from 60 inches to 96 inches (5.0 feet to 8.0 feet)
-
Container Compatibility: Works with 20- to 50-yard containers, lengths 16–24 feet
-
Recommended Trucks: Tandem and tri-axle hooklift trucks, cable/roll-off trucks, and trailers
-
Fixed-Arm Operation: Arms rest on rear container door when tarp is in the covered position
-
Gantry Purpose: Extends tarp life by gently lowering over the load instead of dragging
-
Clearance Requirement: Gantry/roller requires 10–12 inches behind the cab
Note: For trucks carrying multiple container sizes, system can be set for the longest container; arms will overhang shorter containers. For greater adjustability, consider the HR2500 system.
Parts Included:
-
9 feet wide expandable Heavy Duty Mesh Tarp
-
Roll Pin — 5/16" x 1-1/2"
-
Arm Mounting Bracket — 5/8"
-
Retaining Ring
-
Left and Right Base Arm
-
Upper Arm — 13 feet Steel
-
Cover Spring
-
Left and Right Steel Bow
-
Clevis Eye Pad
-
Rear Section — 9 feet Steel
-
90-Degree Elbow
-
Clevis Pin with Cotter
-
3 Hydraulic Adapters
-
Complete Gantry Assembly
-
-8 Society of Automotive Engineers Male x -8 Joint Industry Council Male 90-Degree Elbow
-
Flow Diverter — 5 Gallons Per Minute
-
-4 SAE Male Plug
-
Chassis Mounting Angle
-
Hydraulic Cylinder — 36-Inch Lift
-
Cover Control Valve — 2-Spool
-
-6 Inch x 9 Feet Hose
-
-6 Inch x 6 Feet Hose
-
-6 Joint Industry Council Male x -6 Joint Industry Council Female 90-Degree Elbow
Replacement Covers Available:
-
9-1/2 feet x 28 feet Reinforced Black Mesh
-
9-1/2 feet x 28 feet Cordura (Pennsylvania DOT specification)
-
8 feet x 28 feet Tuff Cover Mesh (for scrap applications)
Replacement Arms Only:
-
H7037: Steel Rear Section / Cross Tube
-
G2104A: Steel Bow — Left Side
-
G2104B: Steel Bow — Right Side
-
G1558: Steel Upper Arm (2)
-
G1544A: Base Arm — Left Side
-
G1545A: Base Arm — Right Side
-
G1532: Retaining Ring (2)
-
G1531: Mounting Bracket (2)
-
G1513: Roll Pin — 5/16" x 1-1/2" (6)

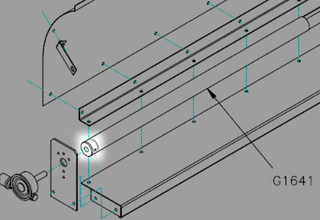

Roller replacement involves three components: left, center, and right side roll, plus any springs, bearings, or other necessary parts. Refer to system diagrams for complete replacement instructions.
