Product Description

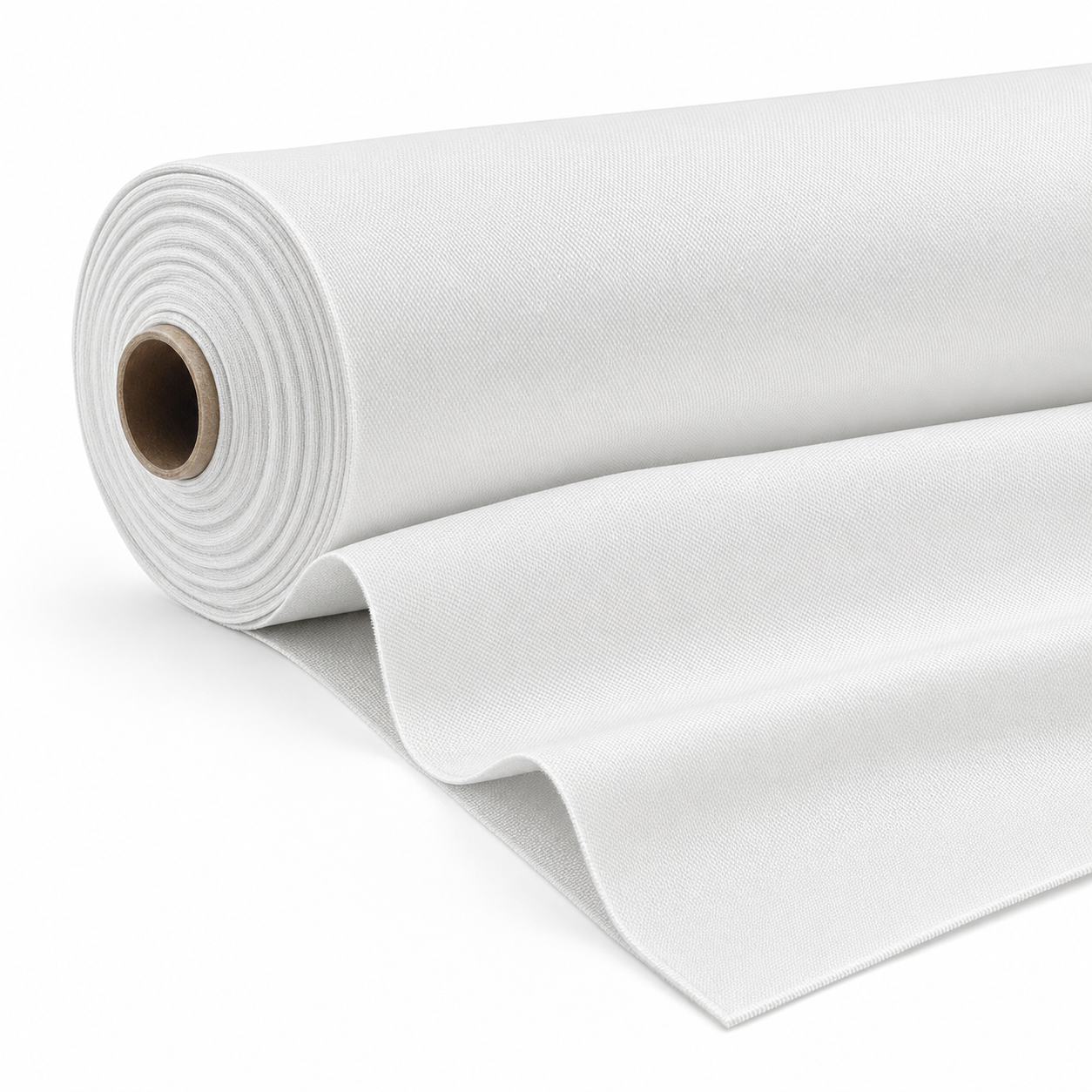

White Insul-Shield Heat Treated Fiberglass Fabric
This medium weight fiberglass welding blanket and curtain fabric offers greater abrasion resistance than the 18 oz. fiberglass. These blankets resist most acids, alkalis and solvents, and withstand continuous temperatures of 1100 degrees.
Specifications
| Fabric | Fiberglass |
| Weave | Plain Weave |
| Finish | Heat Treated |
| Construction | Warp 20 x Fill 14 |
| Temperature Resistance | 1100°F / 593°C |
| K Factor | 0.3399 BTU/inch/hr/sq ft/°F |
| Color | White |
Available Weights & Thickness
| Weight | Thickness | Breaking Strength | Abrasion Resistance |
|---|---|---|---|
| 24 oz | 0.060 in | Warp 240 lbs x Fill 300 lbs | 700 Cycles |
| 35 oz | 0.080 in | Warp 240 lbs x Fill 450 lbs | 35 oz - 240 Cycles |
| 64 oz | 0.130 in | Warp 460 lbs x Fill 420 lbs | 460 Cycles |
Available Widths
- 40 inches
- 60 inches
- 72 inches
Applications
- High temperature welding blankets
- Welding curtains
- High sparking and medium splatter environments
- Industrial heat shields
Key Features
- 1100°F continuous temperature resistance
- Available in 24, 35, and 64 oz weights
- Available by the yard or by the roll (50 yards)
Made in USA | Flame Retardant Fabric
