The Ox Waste Tarp Systems

$7,608.90
SKU:
1801xxx
Weight:
2,000.00 LBS
Shipping:
Calculated at checkout
Quantity:

Product Description

THE OX™ The Strongest Tarp System Available On The Market

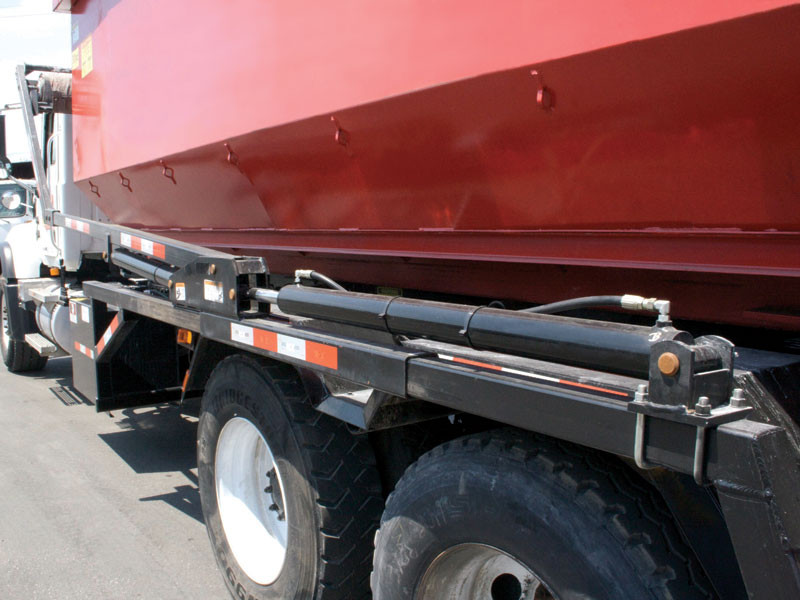

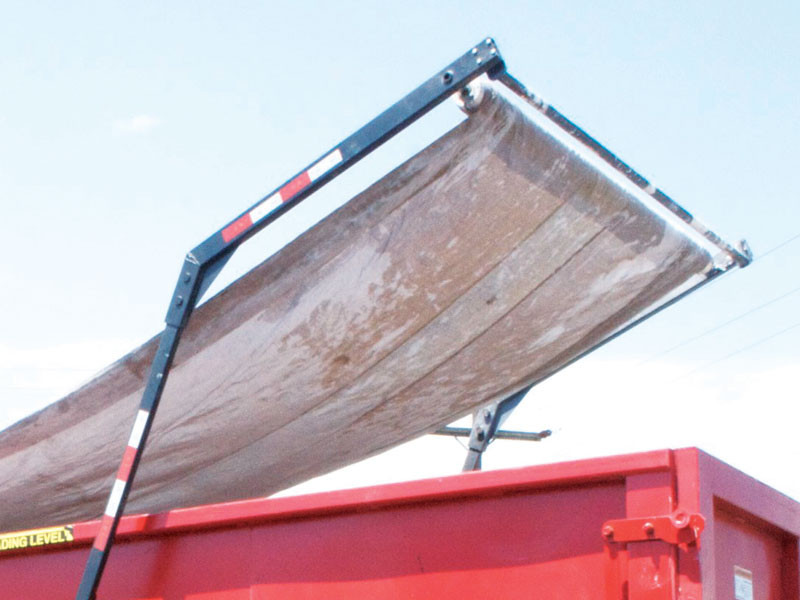

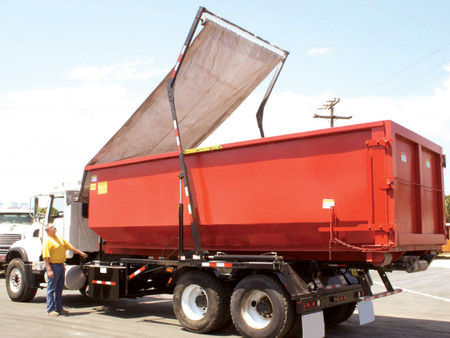

Reliable and operator-friendly, The Ox™ is designed for fast, easy tarping of 15- to 40-cubic foot containers, with an EZ slider that gives the operator total pivot point control for precision coverage. There are no upper arm cylinders to damage, and our Safe-Tension™ tarp roller ratchet provides smooth roller-spring tensioning.

While other brands claim to have strong arms, not one of them is Ox Strong™! The Ox™ is solidly built – as tough as tarpers get – with 2- x 4- x 3/16-inch upper arms and double tube weldment for 3- x 3- x 3/16-inch gusseted lower arms. It’s also reliable and operator-friendly; you can replace a tarp in five minutes or so, thanks to the quick-change spline groove securement.

The Ox™ comes preassembled for easy installation, with pre-fabricated front and rear brackets and everything you need in valves, fittings and hoses included. Approximate shipping weight: 1,800 lbs. Kits contain hardware only. The Mighty Mesh® tarps, with or without flaps, will fit either model. Mighty Mesh® outlasts standard PVC mesh three to one, withstanding heavy usage and the most abrasive loads.

Features:
• 2" x 4" Arms are “Ox Strong”
• Sliding Pivot Desing Reduces and Arm and Cylinder Damage
• Telescoping Tarp Tower
• Easy-Adjust Ratchet Spring Tensioner
• Extruded Tarp Roller w/Spline Groove Allows Quick/Simple Tarp Change

Applications:
• Roll-Off Trucks & Trailers
• Custom Applications Available

Product Videos

Donovan Enterprises - The Ox, automatic rolloff tarping system 01:51

Donovan Enterprises is introducing their new automatic tarp system for rolloffs at Waste Expo in June. Donovan is very excited about their new tarp system which theyve named The OX. Boasting 3/16 wall steel arms, they claim The OX is as strong or stronger than any rolloff tarp system on the market, hence the name. The OX operates from the trucks hydraulic system and all valving is included in each kit. Using 2 manual control levers, the operator can adjust the tarp for all container sizes. One control rotates the pivot arms and the other adjusts the pivot point location of the arms. A third control valve is included with their optional telescoping gantry. Two unique features of every OX tarp system are the Donovan Safe Adjust roller spring tensioner and the Mighty Mesh tarp. The tensioner allows owners to safely add and remove spring tension from the tarp roller. Donovan claims Mighty Mesh lasts 2 to 3 times longer than any other mesh fabric theyve seen and they are not a newcomer to the truck tarp industry. Donovan has been sewing truck tarps since 1977. Video taken at Waste Expo 2009, Las Vegas
