Insta-Curtains; Weld-View, Vinyl Laminate, Welding Curtains

Insta-Curtains Weld-View Vinyl Laminate Welding Curtains — OSHA Compliant UV/IR Protection

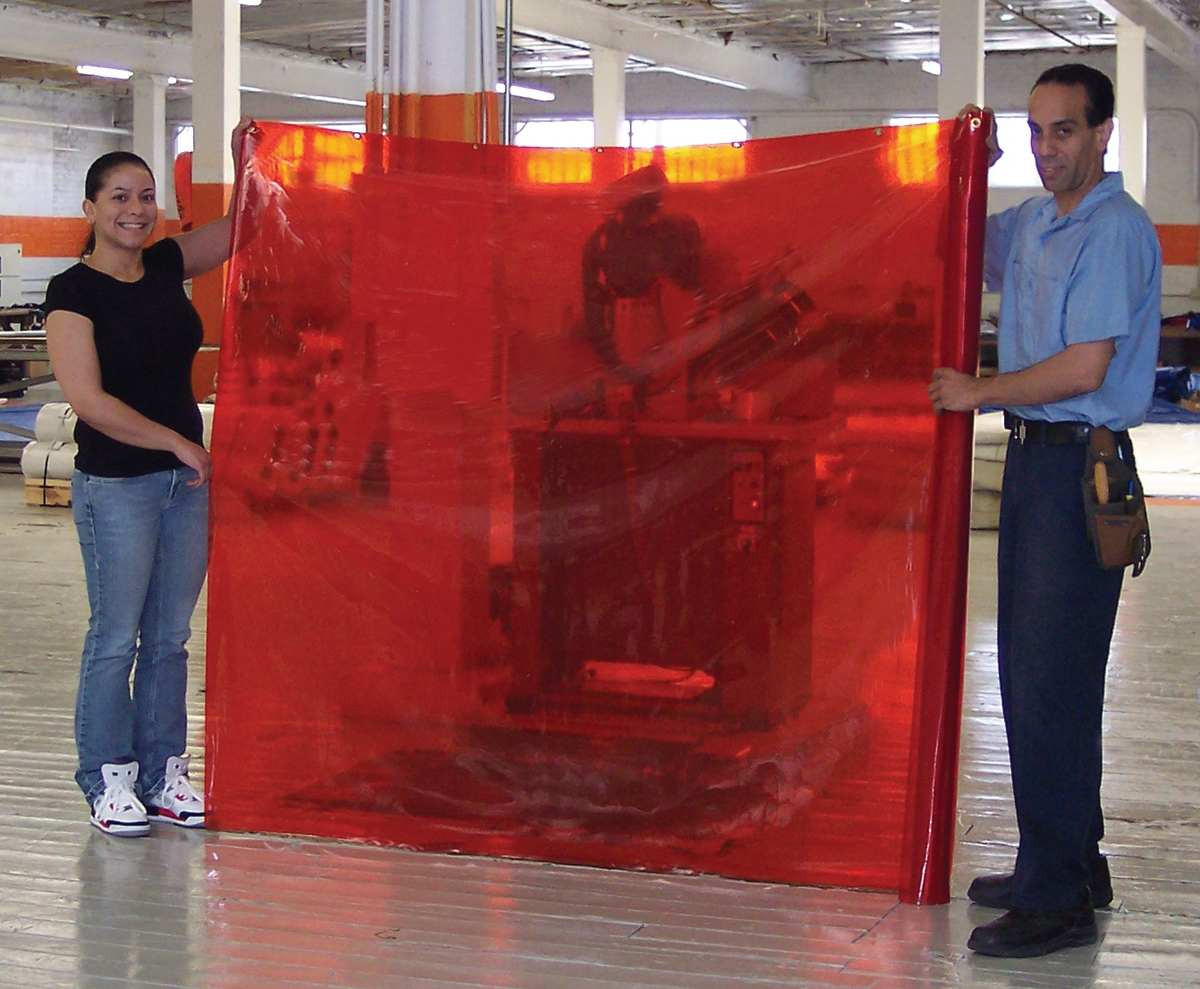

DeBrovys Insta-Curtains Weld-View Vinyl Laminate Welding Curtains are the industry standard for rapid deployment welding cell protection. Engineered from a specially formulated PVC vinyl laminate, these semi-transparent curtains filter hazardous ultraviolet (UV) and infrared (IR) radiation from the welding arc while maintaining enough visible light transmission for supervisors to safely monitor operations from outside the work zone. Unlike solid opaque barriers, the Weld-View design eliminates blind spots in high-traffic fabrication facilities without compromising worker safety.

These curtains are manufactured to meet or exceed OSHA 29 CFR 1910.252 requirements for arc welding and cutting operations, as well as ANSI Z49.1 safety standards. The flame-resistant vinyl laminate construction also satisfies California Fire Marshal requirements, making them suitable for facilities operating under strict state-level fire codes. Whether you are outfitting a single welding station or partitioning an entire fabrication floor, Insta-Curtains deliver professional-grade protection with minimal setup time.

Why Weld-View Vinyl Laminate Outperforms Standard PVC Curtains

Standard single-ply PVC welding curtains degrade rapidly under repeated UV exposure, becoming brittle and developing micro-cracks that allow radiation to pass through. The Weld-View vinyl laminate construction bonds multiple layers of UV-stabilized PVC film, creating a curtain that maintains its optical filtration properties significantly longer than single-ply alternatives. The laminate surface also resists the buildup of weld spatter residue, allowing the curtain to be wiped clean without abrasive scrubbing that would damage a standard PVC surface.

From a practical standpoint, the semi-transparent nature of the Weld-View curtain solves a real operational problem in busy shops: supervisors and quality control personnel can observe the welding process and check on operators without entering the hazard zone or interrupting the weld cycle. This is particularly valuable in training environments and production facilities where throughput and safety monitoring must coexist.

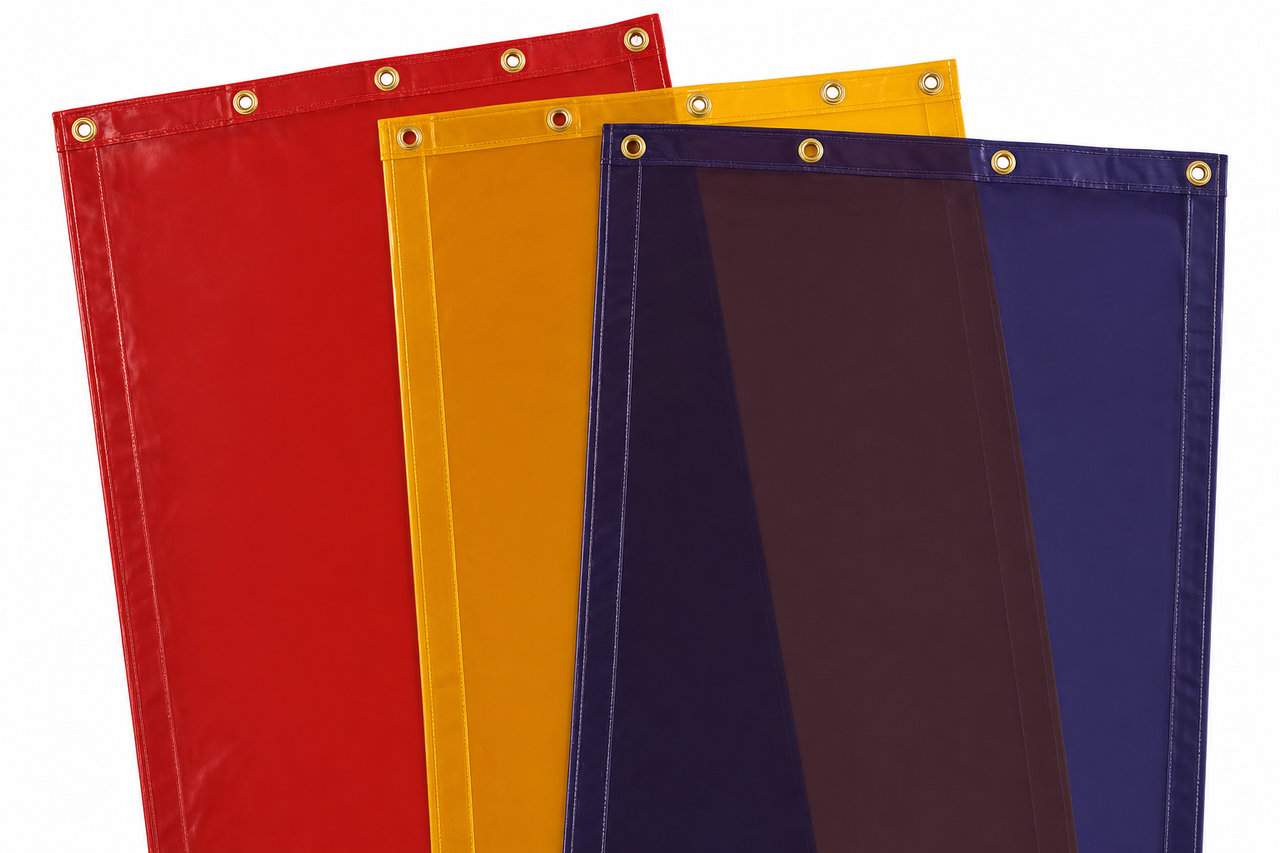

Available Colors and Their Optical Protection Levels

Insta-Curtains are available in multiple safety colors, each formulated to provide a specific level of UV and IR filtration appropriate for different welding processes and amperage ranges. Selecting the correct color is not merely an aesthetic decision — it is a safety-critical choice that must match the welding process being performed.

When in doubt, consult ANSI Z49.1 Table 1 for the recommended shade number corresponding to your welding process and amperage. DeBrovys technical staff can assist with color selection for specific applications — contact us at (502) 584-3352.

Insta-Curtains Product Specifications

Installation and Deployment — Insta-Curtains in Under 5 Minutes

The "Insta" in Insta-Curtains refers to the rapid deployment system. Each curtain ships with grommets pre-installed at standard spacing, allowing them to be hung on existing curtain rod systems, overhead cable runs, or dedicated welding screen frames without any field modification. A single operator can partition a welding cell in under five minutes — a significant advantage over rigid welding screens that require tools and multiple workers to reposition.

For facilities that reconfigure their floor layout regularly, Insta-Curtains offer a major operational advantage. They can be rolled up and stored compactly when not in use, then redeployed in a new configuration as production demands change. This flexibility is not available with fixed welding booths or permanent partition systems.

Welding Curtain vs. Welding Blanket — Understanding the Difference

A common question from facility managers is whether they need a welding curtain, a welding blanket, or both. The answer depends on the hazard being controlled. Welding curtains — including Insta-Curtains — are designed to block UV and IR radiation from the welding arc, protecting bystanders from "welder's flash" (photokeratitis) and skin burns caused by radiation exposure. They provide optical protection, not thermal protection.

Welding blankets, by contrast, are made from materials such as fiberglass, silica, or vermiculite-coated fiberglass. They are designed to catch and contain physical sparks, spatter, and molten metal droplets. They provide thermal and fire protection, not optical protection. A complete welding safety setup in a production environment typically requires both: blankets to protect equipment, cables, and flooring from sparks, and curtains to protect personnel from radiation. DeBrovys manufactures both product lines and can supply a complete facility safety package.

Browse our full range of welding blankets and curtains or read our blog for in-depth guides on welding safety compliance. For custom sizes or bulk orders, contact our team directly at DeBrovys Contact.

Frequently Asked Questions — Insta-Curtains Welding Curtains

Are Insta-Curtains OSHA compliant?

Yes. Insta-Curtains meet OSHA 29 CFR 1910.252 requirements for arc welding and cutting operations, as well as ANSI Z49.1 safety standards. They also satisfy California Fire Marshal flame resistance requirements.

What is the difference between the Red, Gold, and Purple/Blue curtain colors?

Each color provides a different level of UV and IR filtration. Red and Gold/Yellow offer high visible light transmission with standard protection, suitable for low-to-medium amperage MIG and TIG welding. Purple/Blue provides maximum UV/IR filtration for high-amperage TIG, Stick, and plasma cutting operations where arc intensity is greatest.

Can I use a welding curtain instead of a welding blanket?

No — they serve different purposes. Welding curtains filter UV and IR radiation to protect bystanders from arc flash and radiation burns. Welding blankets catch and contain physical sparks, spatter, and molten metal. A complete safety setup requires both products.

How do I mount Insta-Curtains?

Insta-Curtains come with pre-installed grommets and can be hung on standard curtain rod systems, overhead cable runs, or dedicated welding screen frames. No field modification is required — a single operator can deploy a curtain in under five minutes.

Do you offer custom sizes for welding curtains?

Yes. DeBrovys manufactures custom-size welding curtains for facilities with non-standard ceiling heights or unusual partition requirements. Contact us at (502) 584-3352 or visit our contact page to discuss your requirements.

Related Welding & Industrial Safety Resources

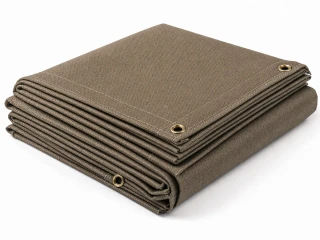

While our Insta-Curtains provide excellent perimeter protection for welding cells, DeBrovys manufactures a complete line of high-temperature safety products for direct heat exposure. For applications requiring direct spark or slag protection, explore our heavy-duty Fiberglass Welding Blankets or our premium Neoprene Welding Blankets. For technical guidance on selecting the correct high-temperature fabric for your specific industrial application, read our comprehensive industrial fabrics blog.
