Product Description

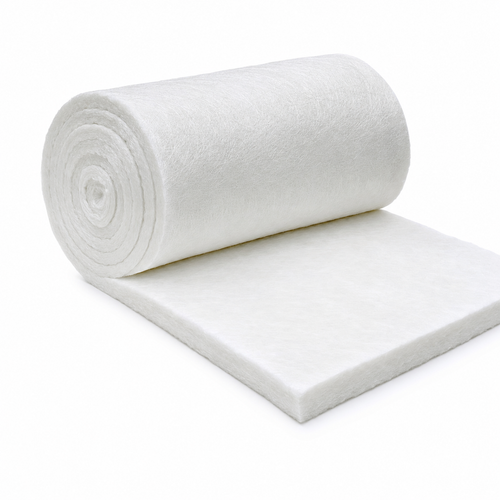

Glass Mat High Temperature Insulation
Mauritzon Glass Mat is composed of an assortment of long glass fibers mechanically formed into a uniform blanket. Fiber used is 100% virgin glass fiber. Offers good thermal protection and sound suppression. Industries are power generation, petro-chemical, shipbuilding, mining, metal refining and other high temperature industrial applications. Resistant to most chemicals with the exception of hydrofluoric and hot phosphoric acid and wet hydrogen chloride. Excellent solvent, sunlight and age resistant. Recommended for temperatures up to 1200°F.
Specifications
| Fabric | 100% Virgin Glass Fiber |
| Finish | Woven Aramid Fiber Blend |
| Thickness | 1 inch |
| Construction | Random |
| Density | 11.2 lbs/cubic ft |
| Temperature Resistance | Up to 1200°F / 815°C |
| K Factor | 0.46 BTU/inch/hr/sq ft/°F |
| Color | White |
| Width | 60 inches |
| Weight | 15 oz per sq. ft. |
Sound Absorption
| Frequency | Absorption Rating |
|---|---|
| 250Hz | 0.70 sq.ft |
| 500Hz | 0.86 sq.ft |
| 1000Hz | 0.95 sq.ft |
| 2000Hz | 0.94 sq.ft |
| 4000Hz | 0.97 sq.ft |
Approvals & Certifications
- MIL-1-16411
- MIL-1-24244
- USCG 164.009
- NRC 1.36
- UL Reference (0 Flame Spread, 0 Smoke)
- ASTM-C-1086-88
Applications
- High temperature insulation pads
- Expansion joints
- Sound suppression
- Power generation facilities
- Petro-chemical plants
- Shipbuilding
- Mining operations
- Metal refining
Key Features
- 100% virgin glass fiber — highest quality
- 1 inch thick for maximum insulation
- Temperature resistance up to 1200°F
- Excellent sound absorption properties
- Resistant to most chemicals
- Solvent, sunlight, and age resistant
- Multiple military and industry certifications
- Available by the yard or by the roll (45 yards)
Made in USA | Flame Retardant Fabric
