7' X 18' F/S Heavy Duty Black Mesh Dump Truck Tarp

7' x 18' Heavy Duty Black Mesh Dump Truck Tarp – Built for Front-to-Rear Tarp Systems

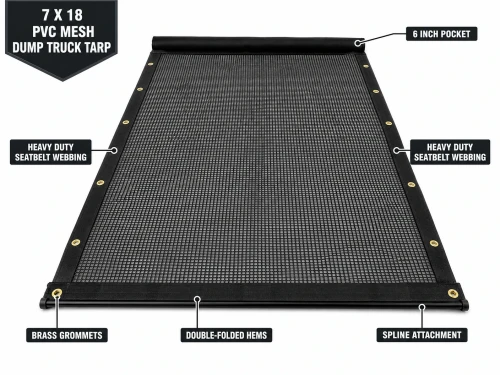

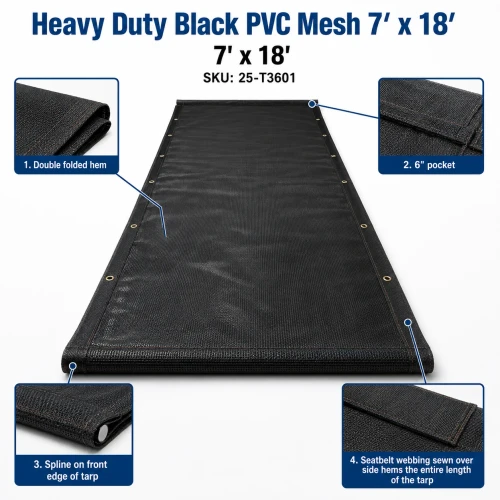

The 7' x 18' F/S Heavy Duty Black Mesh Dump Truck Tarp from DeBrovys is a premium replacement tarp engineered specifically for front-to-rear (F/S) electric and manual tarp systems on dump trucks and dump trailers. Manufactured by DeBrovys, this tarp is built to a higher standard than anything else on the market — using 14x14 weave count with all 1000-denier yarn and reinforced with #6000 2" automotive-grade seatbelt webbing along the full length of both side hems.

Whether you're hauling gravel, sand, topsoil, demolition debris, or aggregate, this tarp delivers reliable load coverage and long-lasting performance season after season. The 6" rear pocket slides directly onto your tarp spool, the spline locks into the front edge of your tarp bar, and the full-length seatbelt webbing keeps the sides secure and taut throughout the entire haul.

Why This Tarp Outperforms the Competition

Most dump truck tarps on the market use a standard 11x11 weave with 800–1000 denier yarn. The Tarps4Trucks black mesh tarp uses a 14x14 weave with 100% 1000-denier yarn — that's 27% more threads per inch and heavier yarn throughout. The result is a tarp that resists tearing, holds its shape under load pressure, and maintains its integrity through thousands of deployment cycles.

The side hem reinforcement is equally superior. Competitors use 500 lb. 2" webbing. This tarp uses #6000 2" automotive-grade seatbelt webbing — the same material used in vehicle safety restraints — rated to withstand far greater tension and abrasion. This is the webbing that keeps your tarp from blowing out at highway speeds.

Key Features

• Size: 7 feet wide x 18 feet long — designed for standard tandem-axle dump trucks and dump trailers
• Material: Black PVC coated mesh — 14x14 weave, all 1000-denier yarn
• Rear Pocket: 6" pocket for direct spool engagement — no adapters needed
• Front Edge: Spline attachment for secure locking into the tarp bar
• Side Hems: Double-folded hem with #6000 2" automotive seatbelt webbing sewn over the full length of both sides
• Compatibility: Fits most standard electric and manual front-to-rear tarp systems
• Color: Solid black — UV-stabilized PVC coating

Technical Specifications

Who Uses This Tarp?

This 7' x 18' black mesh dump truck tarp is the go-to replacement for owner-operators and fleet managers running tandem-axle dump trucks in the following industries:

• Construction & Excavation: Hauling dirt, gravel, crushed stone, and demolition debris
• Landscaping & Agriculture: Transporting topsoil, mulch, compost, and fill material
• Quarry & Mining Operations: Covering aggregate, sand, and rock loads
• Municipal & Road Maintenance: Covering road base, millings, and paving materials
• Waste & Recycling Haulers: Containing loose debris during transport

The 7-foot width and 18-foot length make this tarp ideal for standard tandem-axle dump trucks with bodies in the 16–18 foot range. The 6" pocket and spline system ensure compatibility with the majority of electric and manual tarp systems currently in service.

How the Front-to-Rear Tarp System Works

Front-to-rear (F/S) tarp systems mount a cylindrical spool housing at the front of the dump body, near the cab. When deployed, the tarp unrolls from the spool and is carried rearward by aluminum arms that pivot from the sides of the dump body. The arms extend toward the rear of the truck, pulling the tarp taut over the entire load from front to back. The 6" rear pocket engages the spool at the front, and the spline on the front edge of the tarp locks into the tarp bar to maintain tension.

This tarp is designed as a direct drop-in replacement for most front-to-rear systems. The 6" pocket, spline, and full-length seatbelt webbing ensure a secure, rattle-free fit that holds up through thousands of open/close cycles.

Black Mesh vs. Other Tarp Materials

Black mesh is one of the most popular dump truck tarp materials for a reason — it's lightweight, flexible, and easy to handle. However, not all black mesh is equal. The Tarps4Trucks black mesh uses a tighter 14x14 weave and heavier 1000-denier yarn compared to the standard 11x11 construction found on most competitor tarps. This translates to significantly better tear resistance and a longer service life, even under the abrasive conditions of daily hauling.

If you need maximum strength, consider upgrading to the Mega Mesh tarp, which uses a 20x20 weave and offers more than twice the tear strength of standard mesh products. For asphalt haulers, the Asphalt Lumite tarp is heat-resistant up to 350°F. For complete waterproofing, the 18 oz. Black Vinyl tarp is the right choice.

Frequently Asked Questions

Will this tarp fit my dump truck?
This tarp is 7 feet wide and 18 feet long and is designed for standard tandem-axle dump trucks with a body length in the 16–18 foot range. The 6" pocket and spline system are compatible with most electric and manual front-to-rear tarp systems. If you're unsure, measure your existing tarp or contact DeBrovys for fitment assistance.

What makes the seatbelt webbing on this tarp better?
This tarp uses #6000 2" automotive-grade seatbelt webbing — the same material used in vehicle safety restraints. Most competitor tarps use 500 lb. 2" webbing, which is significantly weaker. The automotive-grade webbing resists tearing, fraying, and UV degradation far better than standard webbing, keeping your tarp secure at highway speeds.

Is black mesh waterproof?
No — black PVC mesh is a porous material designed to contain loose loads (gravel, sand, dirt) while allowing air to pass through. It is not waterproof. If you need a waterproof tarp for asphalt or wet loads, consider the 18 oz. Black Vinyl tarp instead.

How does this compare to the 7' x 20' tarp?
The 7' x 20' version (SKU: 25-T3602) is designed for longer dump bodies in the 18–20 foot range. If your dump body is 16–18 feet, the 7' x 18' is the correct size. Always measure your existing tarp before ordering.
