The 102 inches Electric Flip Tarp 16 feet Gantry Kit is a heavy-duty automatic tarp system designed for dump trucks and trailers up to 16 feet long. This electric system allows for smooth, reliable tarp operation with a simple flip of a switch—saving time and ensuring secure load coverage. Built with high-strength steel gantry arms and weather-resistant components, it provides long-lasting durability even in demanding environments.

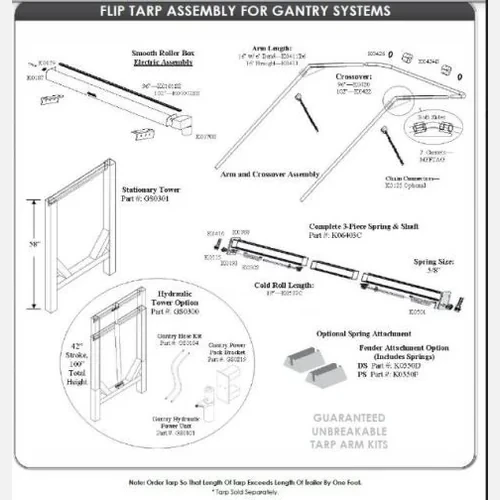

K016SSEG Parts Include:

GS0220: GS Attachment Plate 2 x 8 (Quantity: 4)
HR4512: Tele. Gantry Leg (Quantity: 2)
HR4515: Lower Gantry Only (Plain) (Quantity: 1)
K0102ES: Head Roller Box 102" Elec Smth (Quantity: 1)
K0125: Arm Sleeve and Chain Assembly (Quantity: 2)
K0170S: 60:1 Motor 2.1HP Ass'y (Quantity: 1)
K0198: 5/8 inches - 11 Nylon Lock Nut (Quantity: 16)
K0365B: 5/16 Lock Washer (Quantity: 3)
K0411B6: Arm 16 feet weidth /6 feet Bend and Gusset Weld (Quantity: 2)
K0416N: New Hex Arm Connector w/SS (Quantity: 2)
K0422: Crossover 102 inches Bent (Quantity: 1)
K0514B: Arm Bolts Bag (Quantity: 1)
K0514D: Doughnut and Clamp Bag (Quantity: 1)
K0514I: Ins Bulkhead Brace Bolts Bag (Quantity: 1)
K0521SSR: Elec. Bag Southern Spec.w/RS (Quantity: 1)
K0530S: Inside Bulkhead Brace Steel (Quantity: 2)
K06403C: Half Round Att. 3 Piece Set Comp. (Quantity: 1)
PBFLWSHR: 5/8 Flat washer (Quantity: 32)
ROT0208: ROT All Thread Bolt 5/8 x 15 (Quantity: 8)
