Hydraulic Roller 1500 Power Take-Off - Econo Cover, Alum

System Overview:

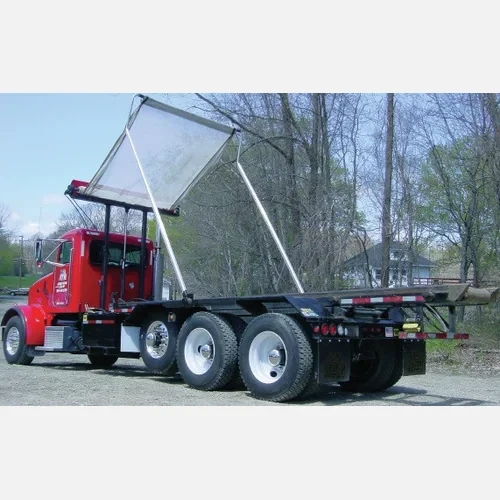

The Hydraulic Roller 1500 Power Take-Off Econocover is an aluminum, fixed-arm automatic tarping system designed for multi-axle hooklift or cable roll-off trucks carrying containers 16 feet to 24 feet in length.

This is the most economical automatic tarping system for these trucks. It features:

• Adjustable hydraulic gantry

• Right-angle direct-drive hydraulic motor/gearbox assembly

• Torsion spring-activated aluminum pivot arms

The system is built for low maintenance and fast installation, estimated at approximately 8 hours.

Note: For heavier duty applications with more versatility, see the Hydraulic Roller 2500 Medium-Duty Roll-Off Tarp System with adjustable gantry and sliding arms.

Econocover Advantages:

• Hydraulic PTO Operation: Uses the truck’s existing hydraulic system through a right-angle direct-drive motor/gearbox

• Hydraulic Gantry: Vertical range from 60 inches to 96 inches (5.0 feet to 8.0 feet)

• Torsion-Spring Powered Pivot Arms: Automatically deploy to cover the load

• Fixed Pivot Arms: Made of aluminum (heavy-duty steel optional)

• Heavy-Duty Mesh Tarp: Standard width 9 feet, expandable

• Fixed Arm Design: Arms rest on the rear dumpster door when in the covered position

• Container Compatibility: Works with 22- to 24-foot containers, including 20- to 50-yard containers

• Recommended Trucks: Tandem and tri-axle hooklift trucks, cable or roll-off trucks and trailers

• Adjustable Gantry Purpose: Gently lowers tarp over the load to extend tarp life; reduces wear

Operation:

1. Gantry is raised hydraulically via Power Take-Off motor.

2. The motor unwinds the tarp from the roller while torsion-spring pivot arms extend.

3. The arms cover the load as the tarp is deployed.

4. Arms rest on the rear door to secure the tarp.

Parts Included:

• Roll Pin — 5/16" x 1 1/2"

• Arm Mounting Bracket — 5/8"

• Retaining Ring

• Left and Right Base Arm

• Upper Arm — 13 feet Aluminum (2)

• Cover Spring

• Left and Right Aluminum Bow

• Clevis Eye Pad

• Rear Section Aluminum

• 90-Degree Elbow

• Clevis Pin with Cotter

• 3 Adapters

• Roller Assembly

• Complete Gantry Assembly

• -8 SAE Male x -8 Joint Industry Council Male 90-Degree Elbow

• Flow Diverter — 5 GPM

• -4 SAE Male Plug

• Chassis Mounting Angle

• Hydraulic Cylinder — 36-Inch Lift

• Cover Control Valve — 2-Spool

• -6 Inch x 9 Foot Hose

• -6 Inch x 6 Foot Hose

• -6 Joint Industry Council Male x -6 Joint Industry Council Female 90-Degree Elbow

Replacement Covers Available:

• 9-1/2 feet x 28 feet Reinforced Black Mesh

• 9-1/2 feet x 28 feet Cordura (Pennsylvania DOT specification)

• 8 feet x 28 feet Tuff Cover Mesh (for scrap applications)

Replacement Arms Parts:

• G1649: Aluminum Rear Section / Cross Tube

• G1650: Aluminum Bow — Left Side (8–19 foot Pioneer Unit)

• G1650B: Aluminum Bow — Right Side (8–19 foot Pioneer Unit)

• G1625: Aluminum Upper Arm (2)

• G1544A: Base Arm — Left Side

• G1545A: Base Arm — Right Side

• G1532: Retaining Ring (2)

• G1531: Mounting Bracket (2)

• G1513: Roll Pin — 5/16" x 1-1/2" (6)
