Pioneer Hydraulic Roller 1000 HI-ROLLER Refuse Tarping System with Power Pack

System Overview:

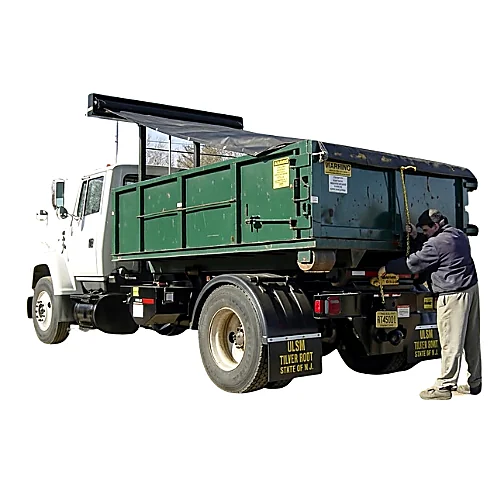

The Hydraulic Roller 1000 HI-ROLLER Refuse Tarping System is a semi-automatic, armless tarping system designed for single-axle hook-lift trucks and cable hoists.

It is engineered to cover open-top, fixed-height containers ranging from 8 feet to 16 feet. The system combines strength, simplicity, and durability, making it ideal for waste hauling, construction, and material transport.

• Power Source: Self-contained 12-volt direct current hydraulic power pack

• Gantry Adjustment: 64 inches (5 feet 4 inches) to 104 inches (8 feet 8 inches)

• Tarp: 9 feet wide, expandable heavy-duty mesh

Tuff-Tarper Advantage:

• Part of Pioneer’s Tuff-Tarper Series for single-axle cable hoist and hook-lift trucks

• Available in semi-automatic, automatic, and hydraulic models

• Built with heavy-duty components for long-term durability

• Standard 9 feet x 19 feet expandable heavy-duty mesh tarp included

For a hydraulic-powered option, see the HR1000PTO, which connects directly to the truck’s hydraulic system instead of using a power pack.

Operating Instructions (Semi-Automatic):

1. Raise the gantry above the container.

2. Flip the rope over the load.

3. Walk to the rear of the truck and pull the tarp over the container.

4. Secure the tarp to the provided cleat.

This system is efficient, easy to operate, and keeps loads compliant and protected.

Parts Included:

Roller and Gantry Components:

• Wheel to Load Roller

• Complete Roller Assembly

• Roll Tube

• Center Section Roll

• Roller

• Gantry Assembly

• Telescopic Gantry Leg — 40 inches (3 feet 4 inches)

• Lower Gantry Cylinder — 40 inches (3 feet 4 inches)

Hardware and Fasteners:

• Lock Ring

• Guide Washer

• Collar

• Steel Housing & Housing Assembly

• Shaft, Spring, Bearing, Cone and Spacer

• Pull Rope with Snap Hook

• Eye Bolt

• Rear Section

• Roll Mounting Angle

• Clevis Eye Pad

• Clevis Pin with Cotter

• Roll Base

• Rope Hook

Hydraulic Components:

• 40-inch Cylinder (3 feet 4 inches)

• Hydraulic Power Pack

• 1/4 inch National Pipe Thread x -6 Joint Industry Council 90 Degree Elbow

• Hydraulic Hose — 4 inches x 9 feet, crimped at both ends

• Hydraulic Hose — 4 inches x 6 feet, crimped at both ends

Replacement Covers Available:

• 9 feet x 19 feet Heavy-Duty Mesh
