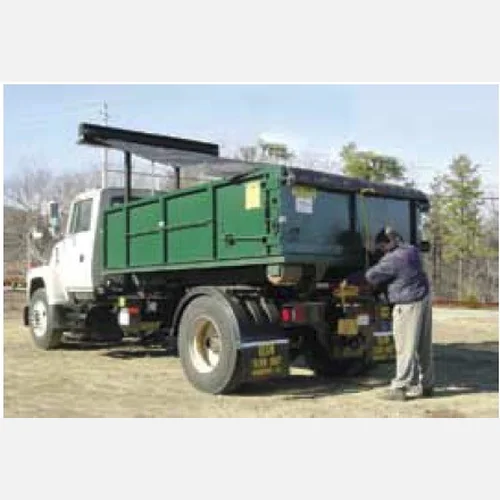

Hydraulic Roller 1000 - Power Take-Off

Pioneer Hydraulic Roller 1000 Tuff-Tarper Series – Power Take-Off / Hydraulic (Semi-Automatic Armless)

System Overview:

The Hydraulic Roller 1000 Tuff-Tarper is part of Pioneer’s Tuff-Tarper Series, designed for single-axle cable hoist and hook-lift trucks. These systems provide reliable coverage for open-top, fixed-height containers ranging from 8 feet to 16 feet.

• Available Models: Semi-automatic, automatic, and hydraulic versions

• Armless Design: Ideal for efficient tarp deployment on tight or narrow containers

• Standard Tarp: 9 feet wide expandable heavy-duty mesh

Hydraulic Operation (HR1000PTO):

• Hydraulic Gantry Adjustment: Extends from 64 inches (5 feet 4 inches) to 104 inches (8 feet 8 inches)

• Hydraulic Integration: Connects directly to the truck’s hydraulic power system

• Simple Operation:

  1. Raise the gantry above the container

  2. Flip the rope over the load

  3. Walk to the rear of the truck and pull the tarp over the container

  4. Secure the tarp to the provided cleat

Parts Included:

Roller and Gantry Components:

• Wheel to Load Roller

• Complete Roller Assembly

• Roller

• Roll Tube

• Gantry Assembly

• 40-inch Hydraulic Cylinder (3 feet 4 inches)

• Roll Mounting Angle

• Roll Base

Hardware and Fasteners:

• Lock Ring

• Guide Washer

• Collar

• Steel Housing Assembly

• Pull Rope with Snap Hook

• Eye Bolt

• Rear Section

• Clevis Eye Pad

• Clevis Pin with Cotter

• Rope Hook

• 90 Degree Elbow (Ell)

• 1/4 inch National Pipe Thread x -6 Joint Industry Council 90 Degree Elbow

• Hydraulic Hose — 4 inches x 9 feet, crimped at both ends

• Hydraulic Hose — 4 inches x 6 feet, crimped at both ends

• -8 Society of Automotive Engineers Male x -6 Joint Industry Council Male Adapter

• -8 Society of Automotive Engineers Male x -8 Joint Industry Council 90 Degree Elbow

• -4 Society of Automotive Engineers Male Plug

• Flow Diverter at 1 Gallon per Minute

• Cover Control Valve

• -6 Joint Industry Council Male x -6 Joint Industry Council Female 90 Degree Elbow

Replacement Covers Available:

• 9 feet x 19 feet Heavy-Duty Mesh

• 9 feet x 19 feet Cordura (Pennsylvania Department of Transportation Specification)
