ECONOCOVER PIONEER SYSTEM

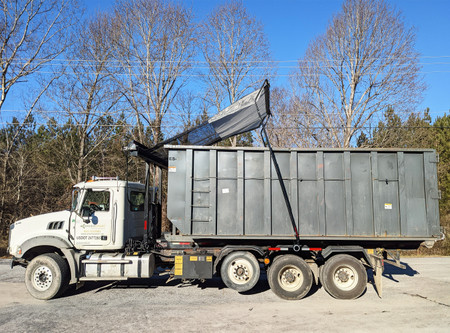

Pioneer Hydraulic Roller 1500 Power Take-Off Roll-Off Tarp System

System Overview:

The Hydraulic Roller 1500 Power Take-Off is a rugged steel roll-off tarp system for multi-axle hooklift and cable roll-off trucks, designed for containers 16 feet to 24 feet in length. It combines steel construction, a hydraulic motor, and adjustable gantry to create a durable, low-maintenance solution.

The system features a torsion spring-activated pivot arm system, hydraulic PTO-driven roller, and hydraulically adjustable gantry for smooth, snag-free deployment of the included heavy-duty mesh tarp. Installation is straightforward, estimated at 8–12 hours.

Features and Benefits:

• Standard Tarp: 9 feet wide expandable Heavy Duty Mesh

• Hydraulic Motor and Gearbox: Right-angle direct-drive assembly powered by the truck’s hydraulic system

• Fixed Length Pivot Arms: Made of heavy-duty steel and powered by reverse-wound torsion springs

• Adjustable Hydraulic Gantry: Moves vertically from 60 inches to 96 inches (5.0 feet to 8.0 feet)

• Container Compatibility: Works with 20- to 50-yard containers, lengths 16–24 feet

• Recommended Trucks: Tandem and tri-axle hooklift trucks, cable/roll-off trucks, and trailers

• Fixed-Arm Operation: Arms rest on rear container door when tarp is in the covered position

• Gantry Purpose: Extends tarp life by gently lowering over the load instead of dragging

• Clearance Requirement: Gantry/roller requires 10–12 inches behind the cab

Note: For trucks carrying multiple container sizes, system can be set for the longest container; arms will overhang shorter containers. For greater adjustability, consider the HR2500 system.

Parts Included:

• 9 feet wide expandable Heavy Duty Mesh Tarp

• Roll Pin — 5/16" x 1-1/2"

• Arm Mounting Bracket — 5/8"

• Retaining Ring

• Left and Right Base Arm

• Upper Arm — 13 feet Steel

• Cover Spring

• Left and Right Steel Bow

• Clevis Eye Pad

• Rear Section — 9 feet Steel

• 90-Degree Elbow

• Clevis Pin with Cotter

• 3 Hydraulic Adapters

• Roller Assembly

• Complete Gantry Assembly

• -8 Society of Automotive Engineers Male x -8 Joint Industry Council Male 90-Degree Elbow

• Flow Diverter — 5 Gallons Per Minute

• -4 SAE Male Plug

• Chassis Mounting Angle

• Hydraulic Cylinder — 36-Inch Lift

• Cover Control Valve — 2-Spool

• -6 Inch x 9 Feet Hose

• -6 Inch x 6 Feet Hose

• -6 Joint Industry Council Male x -6 Joint Industry Council Female 90-Degree Elbow

Replacement Covers Available:

• 9-1/2 feet x 28 feet Reinforced Black Mesh

• 9-1/2 feet x 28 feet Cordura (Pennsylvania DOT specification)

• 8 feet x 28 feet Tuff Cover Mesh (for scrap applications)

Replacement Arms Only:

• H7037: Steel Rear Section / Cross Tube

• G2104A: Steel Bow — Left Side

• G2104B: Steel Bow — Right Side

• G1558: Steel Upper Arm (2)

• G1544A: Base Arm — Left Side

• G1545A: Base Arm — Right Side

• G1532: Retaining Ring (2)

• G1531: Mounting Bracket (2)

• G1513: Roll Pin — 5/16" x 1-1/2" (6)

Roller replacement involves three components: left, center, and right side roll, plus any springs, bearings, or other necessary parts. Refer to system diagrams for complete replacement instructions.
